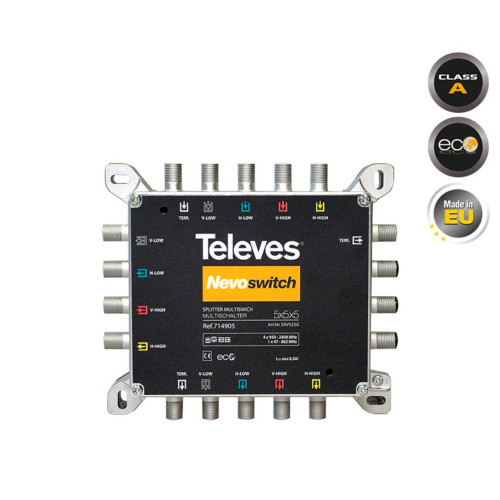

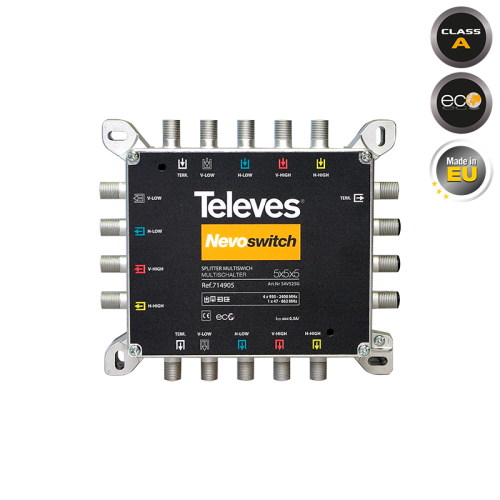

Product description: Televes 714905 Nevoswitch Splitter 5x5x5 4/4dB has configurable elements for better signal adjustment. Chassis made of zamak: radiation inmune. Suitable for star/cascade system configurations. Independent Output Level adjustment (except QUAD compatible units). Low consumption ECO mode. Thanks to the ECO system, the consumption decreases as the number of users is reduced. Technical features: - Type: 5x5x5 - Small size and compact design. - Cascadable and terminal configuration in a single reference. - Independent line-amplifier level adjustment. - Multiple powering options (Jack, VLow, Terrestrial Input/Output and user outputs) - Independent output level adjustment. - Frequency range MHZ: SAT 950-2400, TERR 47-862 - Max output level dB΅V: SAT TERR - - Max gain db: SAT TERR - - Equaliser db: SAT TERR - - Through losses db: SAT/TERR - 4 ± 1 - Tap losses(adjustable -12dB): SAT min - max - TERR max - - Isolation IN-OUT db: SAT >25 - LNB control signals: mA LNB/TER / Input max. 250, A LNB/TER Total: 1 - Powering: Vdc 12 - DC pass : In-Out / Out-In (Bidirectional) - Max. consumption mA: Power Supply 12Vdc (PWR); - Receiver (12/18V): - - Temperature Range C: -5...+45 C - Protection level IP: IP20 - Dimensions mm: 140x120x 30 GARANCIJA 24 MESECEV!

Write a review

Please login or register to review

NEVOSWITCH SPLITTER 5x5x5

  • Brand: TELEVES
  • Product Code: 714905
  • Availability: 2-3 Working Days
  • 41.90€

  • Ex Tax: 34.34€
