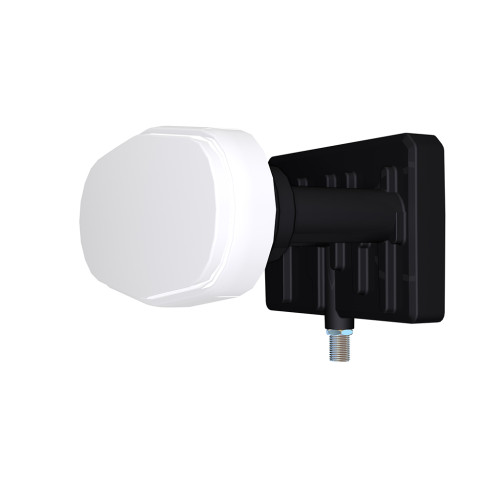

INVERTO/TRIAX  Monoblock single TRIPLEFEED 3° , uporaba npr. ASTRA 19,2°E +  EUTELSAT 16.0°E ( RTV SLOVENIJA) in HOTBIRD 13,0°)

UPORABA: pri sistemih za sprejem vseh treh  satelitov v razmaku 3° ter priključitve enega (1) satelitskega sprejemnika. Ena satelitska antena, sprejem vseh treh satelitov ASTRA 19.2°E + EUTELSAT 16.0°E +  HOTBIRD 13,0° brez motorja, brez obračanja, fiksni sistem!

OPOZORILO: Velikost objemke FEED-a je 23 mm, priloženi distančniki za  60 mm.

V kolikor vaša antena ne podpira te velikosti FEED-a se pred nakupom posvetujete z našimi tehniki.

LNB ima vgrajena tudi DISEqC 1.0 preklopnik

Priporočena uporaba na 85 cm antenah.

GARANCIJA: 12 mesecev!

OSTALI TEHNIČNI PODATKI PROIZVAJALCA ( angleški jezik) Low Band Input Frequency Range 10.7 ~ 11.7 GHz         O/P Frequency Range 950 ~ 1950 MHz         LO Frequency   9.75 GHz         Noise Figure 1.0(max) dB High Band Input Frequency Range 11.7 ~ 12.75 GHz         O/P Frequency Range 1100 ~ 2150 MHz         LO Frequency   10.6 GHz         Noise Figure 1.0(max) dB LO Initial Accuracy ± 1.0 MHz LO Temperature Drift ± 3.0 MHz LO Phase Noise @ 1K Hz -55 dBc / Hz LO Phase Noise @ 10K Hz -80 dBc / Hz LO Phase Noise @ 100K Hz -100 dBc / Hz Conversion Gain 50 ~ 62 dB Gain Variation 6 [max] dB Output 1 dB Compression Point 0.0 [min.] dBm Crosstalk Isolation 20 (min)dB Output VSWR 2.5 : 1~ Output Spurious (inter-modulation) -55 [max] dBm DC Power 10~20/150 [ max.] DCV/mA Working Temperature - 30 ~ + 60 °C Output Impedance 75 Ω  Polarity , Band & Satellite Selection V, L, 16°E 13V, 0kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection V, H, 16°E 13V, 22kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection H, L, 16°E 18V, 0kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection H, H, 16°E 18V, 22kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection V, L, 13°E 13V, 0kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection V, H, 13°E 13V, 22kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection H, L, 13°E 18V, 0kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection H, H, 13°E 18V, 22kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection V, L, 19.2°E 13V, 0kHz, DiSEqC1.0: Sat C Polarity , Band & Satellite Selection V, H, 19.2°E 13V, 22kHz, DiSEqC1.0: Sat C Polarity , Band & Satellite Selection H, L, 19.2°E 18V, 0kHz, DiSEqC1.0: Sat C Polarity , Band & Satellite Selection H, H, 19.2°E 18V, 22kHz, DiSEqC1.0: Sat C
