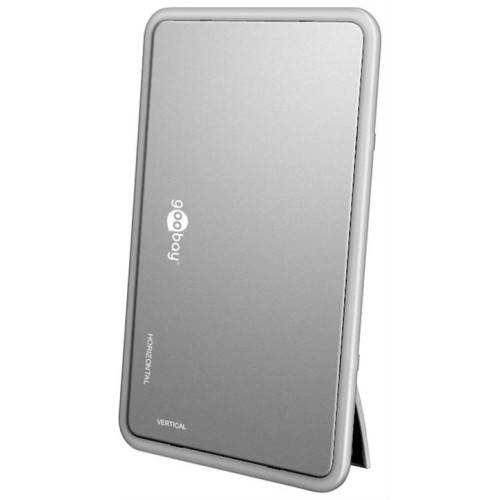

for reception of DVB-T / DVB-T2 HD (DTT) with 20 dB / 16 dB gain

• for reception of analog and digital TV signals in the VHF (47 MHz - 230 MHz) and UHF (470 MHz - 790 MHz) range
• active DAB, DVB-T, and DVB-T2 antenna especially for HD/SD digital terrestrial TV reception
• integrated amplifier VHF 20 +/-3 dB and UHF 16 +/-4 dB
• GSM/LTE/4G filter to avoid annoying interference by cell phones
• shielded coaxial cable and coaxial connector for interference-free reception

Technical specifications

• Cable
• Cable typecoaxial cable
• Signal transmission
• Transmission modesDVB-T, DVB-T2, FM, UKW
• Directivity patternomnidirectional
• Frequency Range VHF from47
• Frequency range VHF to230
• Frequency Range UHF from470
• Frequency range UHF to790
• Signal amplificationyes
• antenna gain20
• antenna gain16
• blocking filterLTE/4G
• Amplifier power-supplyvia power supply (Euro plug, 230V)
• General
• Consumption Unit1 pc. in cardboard box
• antenna TypeIndoor Antenna
• Colorgrey
• Markings4G/LTE-Filter, CE, Goobay_DVB-T2_HD, WEEE
• Length210 mm
• Width140 mm
• depth30 mm
• Scope of delivery
• Operation manualDE, EN, FR, IT
• power Supply100-240 V (Euro)
